Three Phase
SOLAR GRID TIE INVERTERS THREE PHASE
5KW - 30KW

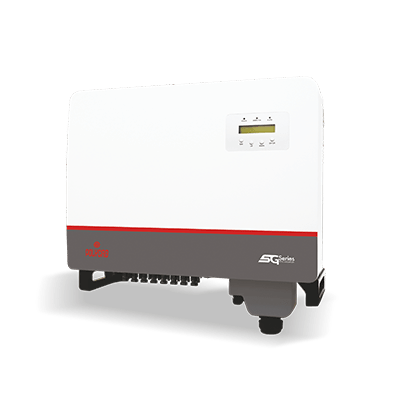

25KW – 40KW
- More reliable & efficient with world-class components for 20 years design life
- High-frequency switching technology
- Low start-up voltage and ultra wide MPPT range for more energy generation
- Multiple protection levels
- THDi < 1.5% | Max. Efficiency 98.7%
- IP65 for outdoor installations
- Compact size and light weight design for easy installation
- RS485; Wi-Fi / GPRS / LAN Interface (Optional)
- Free remote monitoring on Web Portal and Mobile App
- 5 years standard warranty, extendable up to 20 years

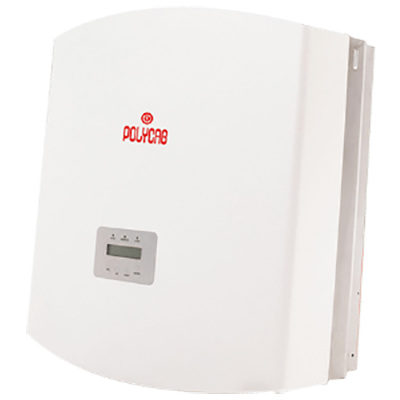

50KW – 60KW
- Maximum efficiency over 98.9%, EU efficiency over 98.5%
- Wide MPPT voltage range with 4 MPPT design and precise MPPT algorithm
- IP65 certified for outdoor installation
- Low harmonic distortion | THDi < 3%
- Integrated DC switch
- Intelligent redundant fan-cooling
- 5 years standard warranty with extended warranty option
- Onboard SPDs for DC & AC sides
- Free remote monitoring on Web Portal & Mobile App

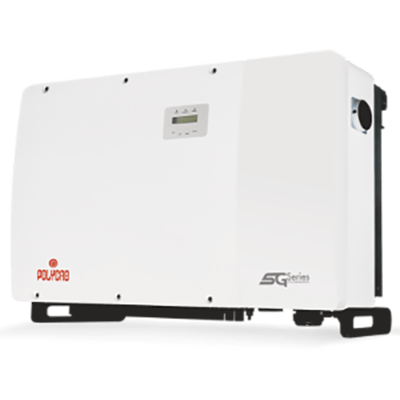

80KW – 110KW
- Maximum Efficiency 98.7%
- Wide voltage range and low startup voltage
- Supports 50% DC overload, 9/10 MPPT design with precise MPPT algorithm
- THDi < 3%, Low Harmonic Distortion
- IP66 for outdoor installation
- Anti-resonance, supporting over 6MW paralleled in one transformer
- Intelligent fan cooling
- High precision intelligent string monitoring
- Night SVG function
- Smart I-V Curve Diagnosis supported
- Fuse-free design to avoid hazard
- Type II SPD for both DC and AC side
- Leakage current repression technology
- Volt-Watt work mode integrated
- DC input reverse alarm
- Integrated DC and AC (optional) disconnect switches
- RS-485, Ethernet; Wi-Fi / GPRS / LAN; PLC (optional) monitoring interface
- Support “Y” type connection in DC side
- Supports aluminium wire access to reduce cost
- Free remote monitoring on Web Portal and Mobile App
- 5 Years standard warranty, extendable up to 20 years
